Solar rated expansion vessels, manufactured by Elbi in Italy.
Designed exclusively for high temperatures found within solar applications.
Tested up to max temp 130°c and suitable for 50/50 glycol/water mix.
Pre-set at 3bar
Always ensure adequate corrosion inhibitor is added to the system.
PLEASE NOTE SIZES ABOVE 50LTR ARE NOT KEPT IN STOCK AND WILL NEED TO BE ORDERED IN AS A SPECIAL - PLEASE ENQUIRE REGARDING LEAD TIME.
|
Product Code |
Size |
Connection |
Max Bar |
Max °c |
O/D |
Height |
|

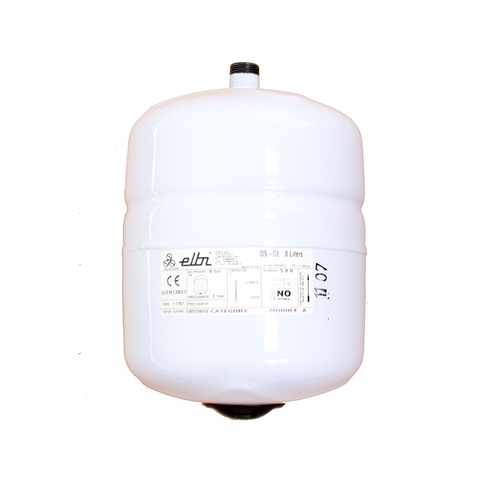

0093200008 |
8ltr |
3/4” M |
8bar |
130°c |
205mm |
300mm |
|

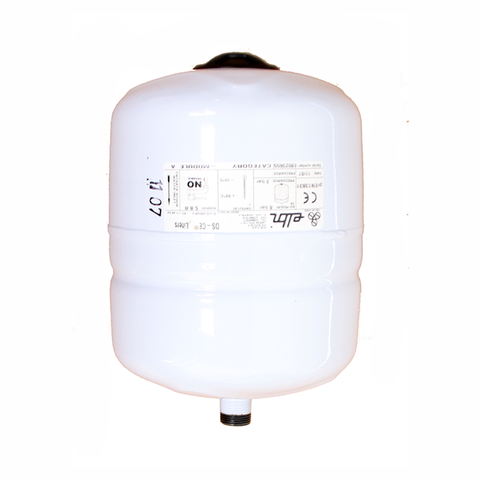

0093200018 |
18ltr |
3/4” M |
8bar |
130°c |
270mm |
410mm |
|

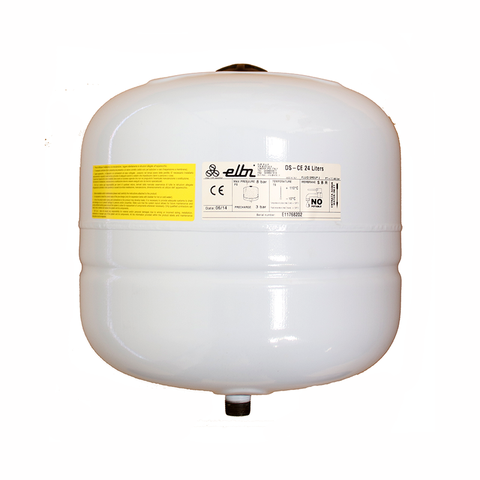

0093200024 |
24ltr |
1” M |
8bar |
130°c |
320mm |
355mm |
|

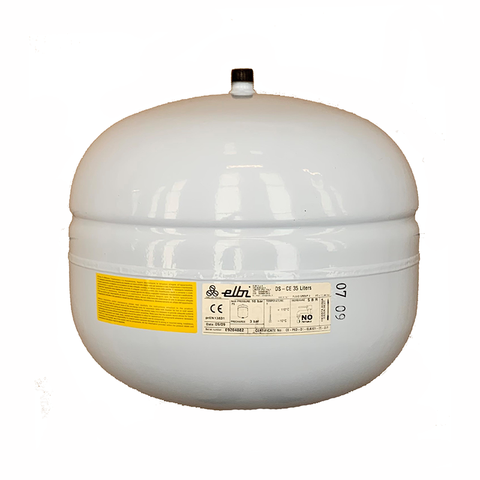

0093200035 |
35ltr |
1” M |
10bar |
130°c |
400mm |
390mm |
|

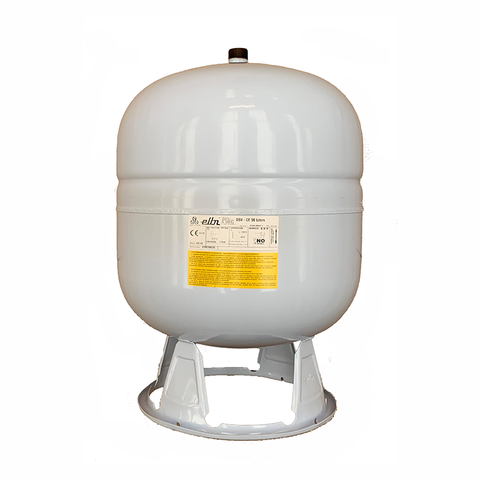

0093200050 |
50ltr |
1” M |
10bar |
130°c |
400mm |
585mm |
|
0093200080 |
80ltr |
1” M |
10bar |
130°c |
400mm |
820mm |
|
0093200100 |
100ltr |
1” M |
10bar |
130°c |
500mm |
775mm |
|
0093200150 |
150ltr |
1” M |
10bar |
130°c |
500mm |
1005mm |
|
0093200200 |
200ltr |
1” M |
10bar |
130°c |
600mm |
1065mm |
|
0093200300 |
300ltr |
1” M |
10bar |
130°c |
650mm |
1240mm |
