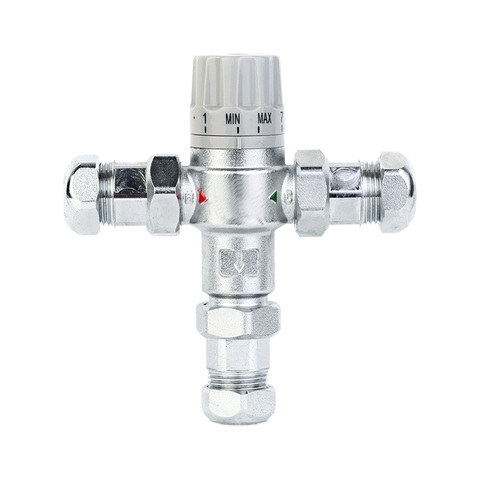

22mm Thermostatic Mixing Valve.
Primarily designed for single outlet use, featuring a fail safe operation and are approved to TMV2, TMV3 and WRAS.
Technical Specifications -
Connections - 22mm Compression Fitting
Temperature setting range - 38 to 46°c
Accuracy - +/- 2°c
Max. working pressure (static) - 10 bar
Max. working pressure (dynamic) - 5 bar
Max. inlet temperature - 100°C
Max. inlet pressure ratio (H/C or C/H) - 2:1
Minimum temperature difference between the inlet hot water and the outlet mixed water to ensure anti-scald performance - 10°C
Minimum flow rate for stable operation - 3.7l/min
