20ltr stainless steel low loss header - A class rated
20ltr stainless steel low loss header - A class rated
20ltr stainless steel low loss header - A class rated

20ltr stainless steel low loss header - A class rated

HPBT0020

Regular price £421.20

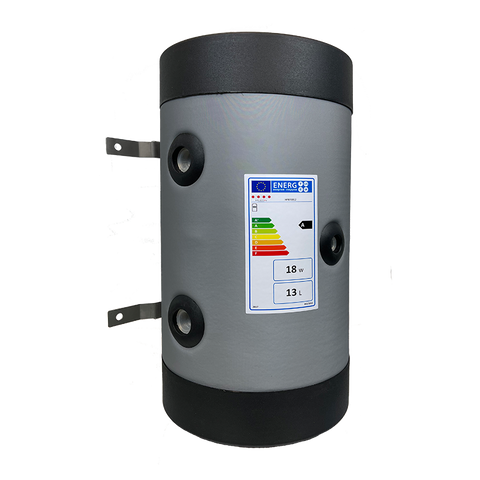

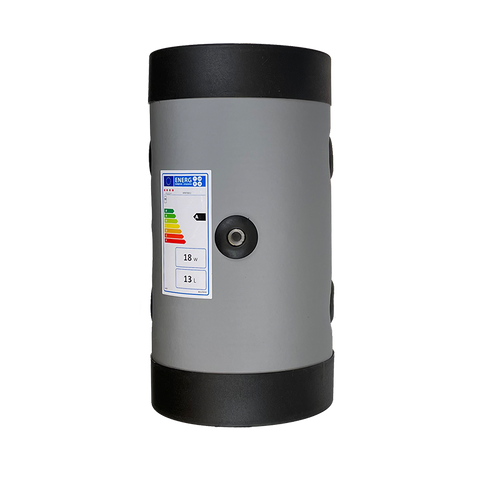

20ltr stainless steel low loss header, A class rated and wall mounted

Specifically designed for use with Heat Pump installations to provide a stored volume of heated water which helps to prevent heat pump short cycling and can increase response times, COP and increase the life span of the heat pump.

Due to the design they also provide the same operation as a low loss header by dividing the flow and return circuit hydraulically in the system to compensate for differences in flow rate and pressure drop.

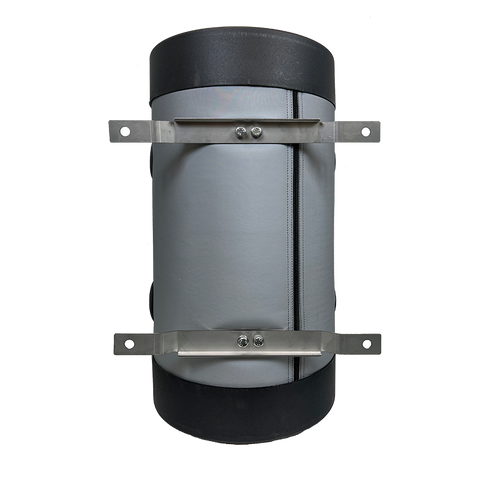

Manufactured using 304 grade stainless steel, the HPBT0020 is supplied as standard with wall mounting brackets and fully insulated.

10 year warranty


The HPBT are fully insulated Class A rated all stainless low loss headers complete with wall mounting brackets.

HPBT0020

4 x 1-1/4" BSP female side connection (flow and return connections)
1 x 1/2" BSP female front mounted connection (for temperature / sensing)
1 x 1/2" BSP female top mounted connection (for air release valve)
1 x 3/4" BSP female bottom connection (for drain valve)

SIZE

360mm O/D x 600mm H
