Water Softener Bypass Valve
Water Softener Bypass Valve with 3/4" full bore flow and return connections, Features a full bypass mode for isolating and servicing a water softener. The water softener bypass valve is designed for long and reliable life in a simple to install, simple to use compact monobloc design.
By reducing the number of components needed the water softener bypass valve reduces any potential for leakage.
Designed for use when installing and maintaining any water softener for ease of use and servicing the water softener.

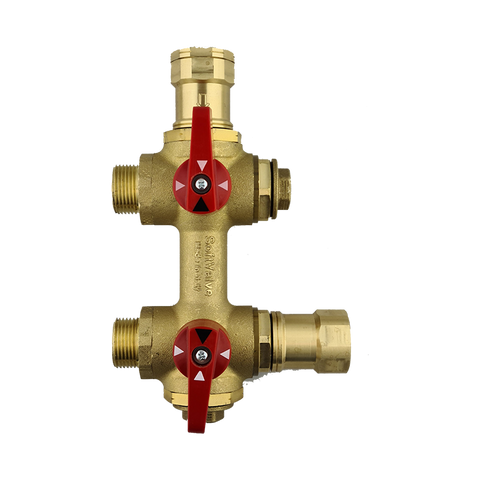

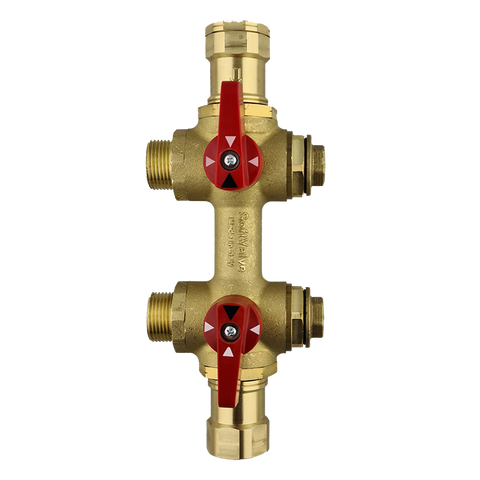

Using a unique interchangeable non-return valve and spacer piece the valve can be
installed in up to 8 possible configurations.
Each interchangeable part is fitted with an O-Ring to allow quick and leak free installation.
Two sealing caps with O-Ring seals are also provide to cap off any unwanted ports.
Connection to the water supply is by way of 3/4" female connections and to the water softener is 3/4" male connections.

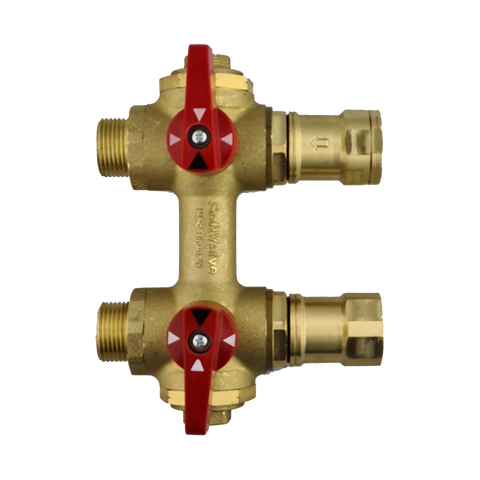

Full Bore flow and return.

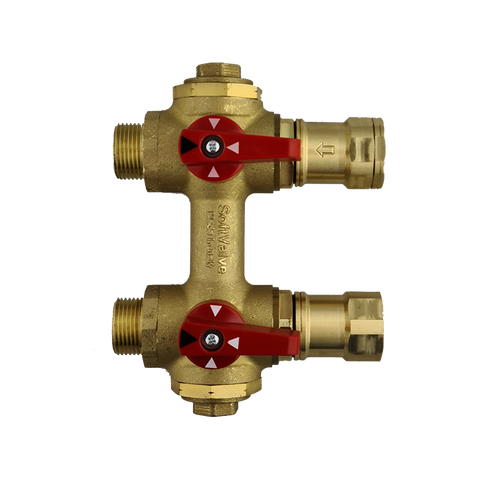

Full Bypass Mode
Easy to install
Easy to use
Boxed with full instructions.
